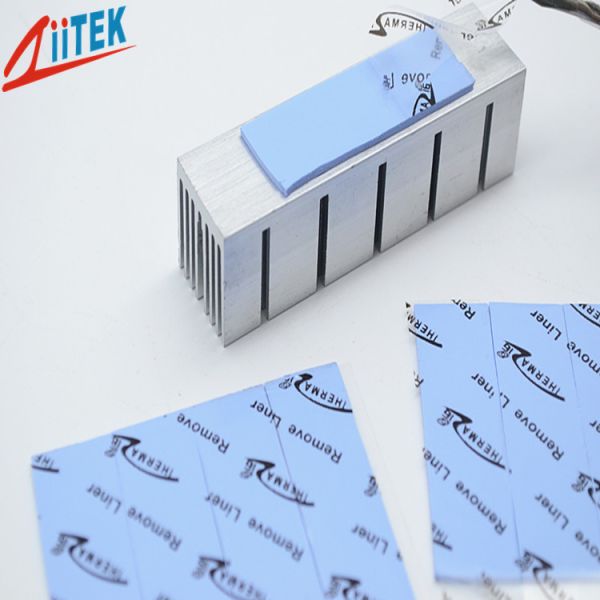

2W/MK Premium Soft Silicone Thermal Pad For Advanced Cooling Needs

  • 1
  • 2

Hardness : 65/45 shore00

Sample : Sample available

Products name : 2W/MK Premium Soft Silicone Thermal Pad for Advanced Cooling Needs

Density : 2.65g/cm³

Application : Cooling conmponents

Payment Terms : T/T

Keywords : Thermal Pad

Thickness : 2mmT

Thermal conductivity : 2.0W/m-K

Brand Name : ZIITEK

Model Number : TIF100-20-05S

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Supply Ability : 10000/day

Delivery Time : 3-5work days

Packaging Details : 1000pcs/bag

Contact Now

2W/MK Premium Soft Silicone Thermal Pad for Advanced Cooling Needs


The TIF®100-20-05S is an extremely soft gap filling material rated at a thermal conductivity of 2.0W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. Ziitek TIF®100-20-05S is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.


Features


> Good thermal conductive: 2.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS And UL compliant


Applications


> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components


Typical Properties of TIF®100-20-05S Series
Property Value Test method
Color

Blue

 Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.65 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
0.25~0.50 0.75~5.00
Hardness(Shore 00) 65 45 ASTM 2240
Recommended Operating Temperature (℃) -40 to 200 ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1Mhz 4.7 ASTM D150
Volume Resistivity(Ohm-cm) ＞1.0X1012 ASTM D257
Thermal Conductivity (W/m-K) 2.0 ASTM D5470
2.0 ISO22007
Fire rating V-0 UL 94 (E331100)

Product Specifications


Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.


2W/MK Premium Soft Silicone Thermal Pad For Advanced Cooling Needs
Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated


Company profile


Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


Our services


Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples


After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
